Specifications |
|||
|---|---|---|---|
| Manufacturer | Krauss Maffei | ||
| Year | 2016 | ||

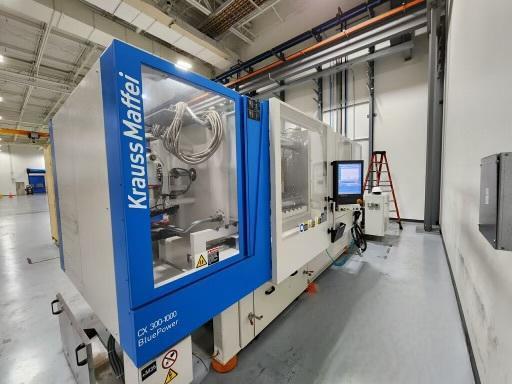

| Model | 300-1000CX | ||
| Shot Size | 13.6 oz. | ||
| Clamping Force | 330 ton | ||
| Tie Bar Spacing | 24.82" x 24.82" | ||

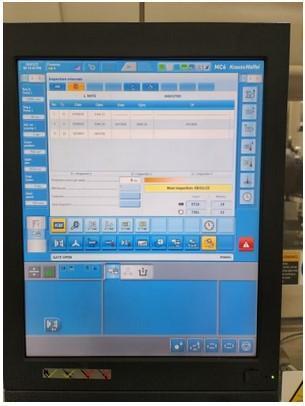

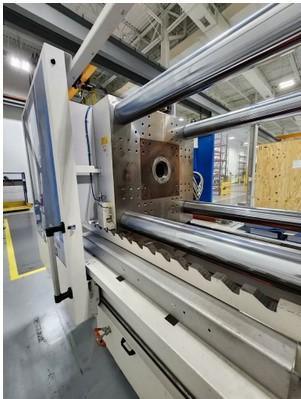

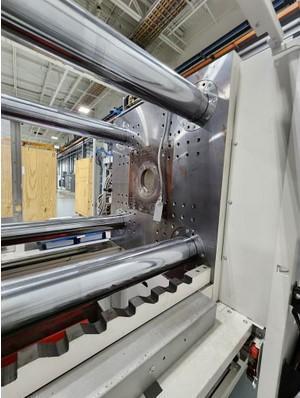

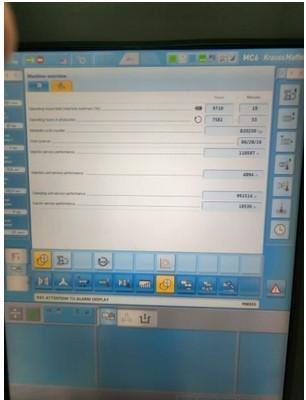

| Mold Opening Force: 19 Ton Travel Opening Force (Movable Platen): 9.7 Ton Travel Closing Force (Movable Platen): 7.6 Ton Platen Size: 39.20" x 41.37" Platen Size (Extended Horizontal): 42.36" x 41.37" Platen Size (Wide Platen Option): 46.30" x 44.92" Tie Bar Spacing: 24.82" x 24.82" Tie Bar Spacing (Extended Horizontal): 27.97" x 24.82" Tie Bar Spacing (Wide Platen Option): 31.91" x 28.37" Mold Opening Stroke: 32.31" Min Mold Height: 13" Min. Mold Height (Extended): 18.91" Max Daylight: 45.31" Max. Daylight (Extended): 51.22" Ejector Stroke: 7.88" Ejector Force (Forward/Backward): 6.5 / 3.2 Ton Controller: MC6 Equipped with: air core pull on fixed platen, blue power, EURO67 robot interface, EURO73 robot interface for side entry, pneumatic hot runner controller Machine Dimensions: 256"L x 87"W x 91"H Machine Weight: 31,967 Lbs |
|||
