TempEase Hot Runner Controllers

Introducing TempEase Hot Runner Controllers

Control your Temp with Ease! 5, 8, & 12 Zones Available .

These innovative Hot Runner Temperature Control Systems offer you a solution that is compatible with most other plug-in module style systems, plus the benefit of some of the best pricing anywhere. We also know you will appreciate the many advanced features this fully automatic, self-tuning system has to offer.

Consistent temperature control can improve part quality and reduce scrap. Hot Runner Controllers provide dependable temperature control for runnerless/sprueless injection molds, machine nozzles, hot sprue bushings, or any other application requiring thermocouples to monitor temperature.

TempEase is stocked in all popular mainframe sizes from self-contained 5 zone portable units through 12-zone mainframe units. Contact us to learn more at Sales@ZAGEquipment.com.

Browse Hot Runner Controllers

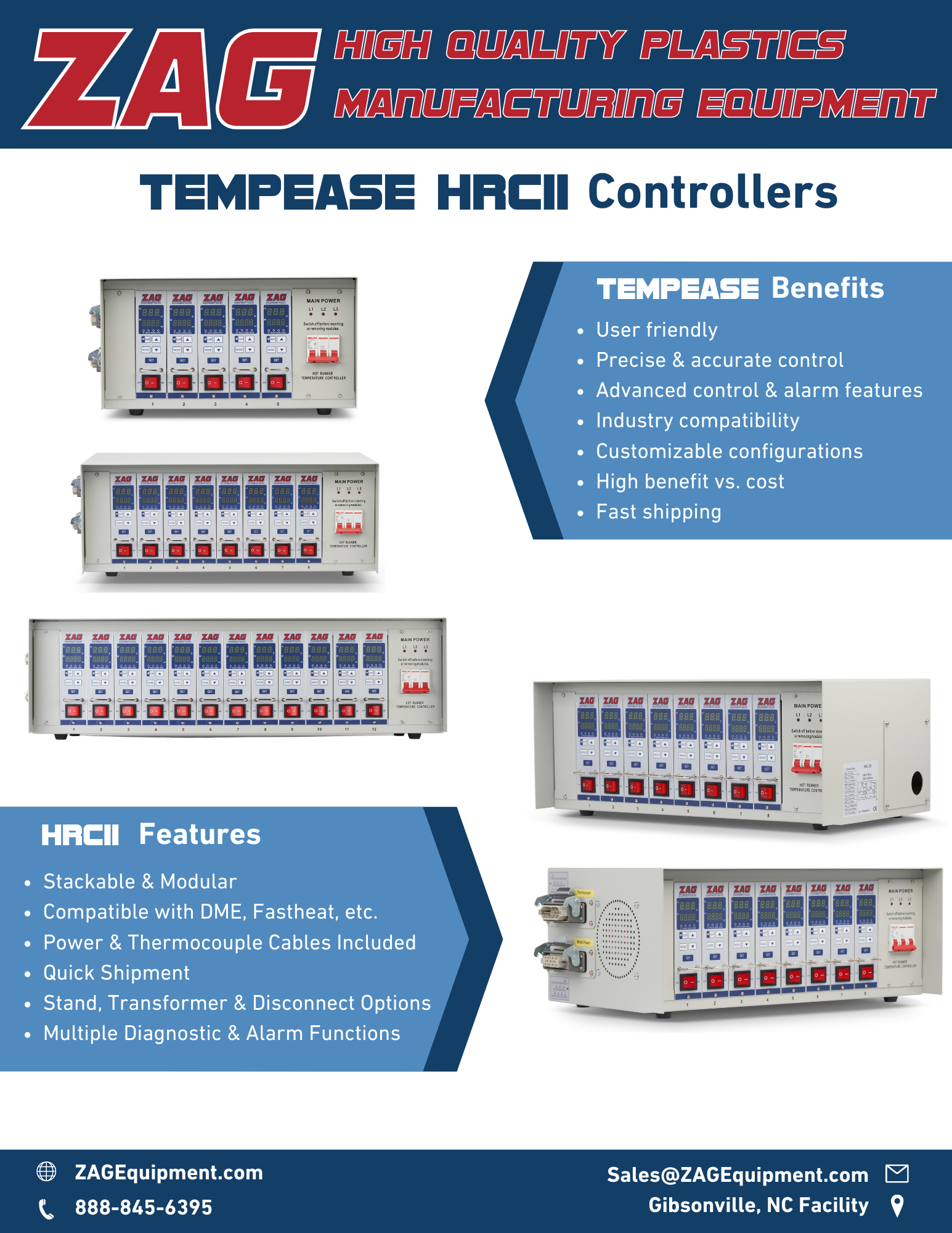

View PDF Brochure

Contact Us to Learn More

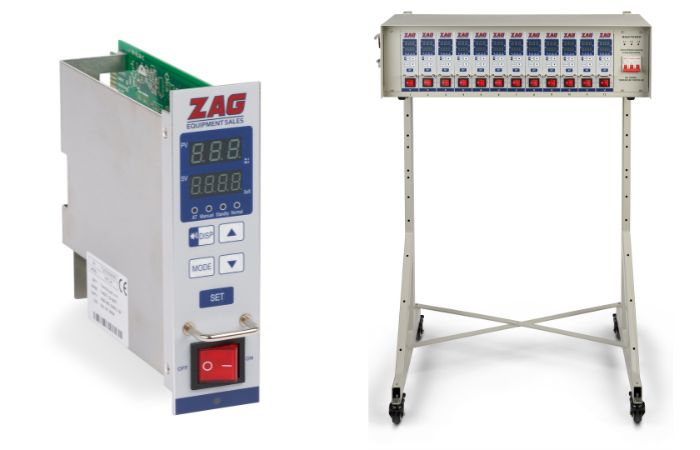

TempEase HRCII Controllers

We are proud to launch the TempEase Hot Runner Controller product line. The HRCII Controllers provide dependable temperature control for injection molds, machine nozzles, hot sprue bushings, or any other application requiring thermocouples to monitor temperature.

More Information

TempEase Controller Specifications

• Input Voltage: 240VAC 3P
• Output Voltage: 240VAC, single phase
• Amps Per Zone: 15 Amp
• Zones Per Card: 1
• Control Accuracy +/- 0.3 F

TempEase Controller Features

• Alarm Output
• Select Auto / Manual Mode / Standby Function
• Select Load Current / Output Percent Display
• Selectable Load Current Limit
• Soft Start Indicator
• PID or Fuzzy Control

TempEase Controller Technology

• J or K Thermocouples
• 32-842F Measurement Range
• Zero Cross / Phase Angle
• Thermocouple & Heater Damage Protection
• Max Load Current Limit Setting

Precise Technology: Saving Time & Space, Adding Value & Flexibility

ZAG's Temp Ease hot runners are ready to order, affordable and an ideal solution for handling tight time-to-market windows. Quite simply, they deliver high performance without a high price.

More Information
