Specifications |
|||
|---|---|---|---|

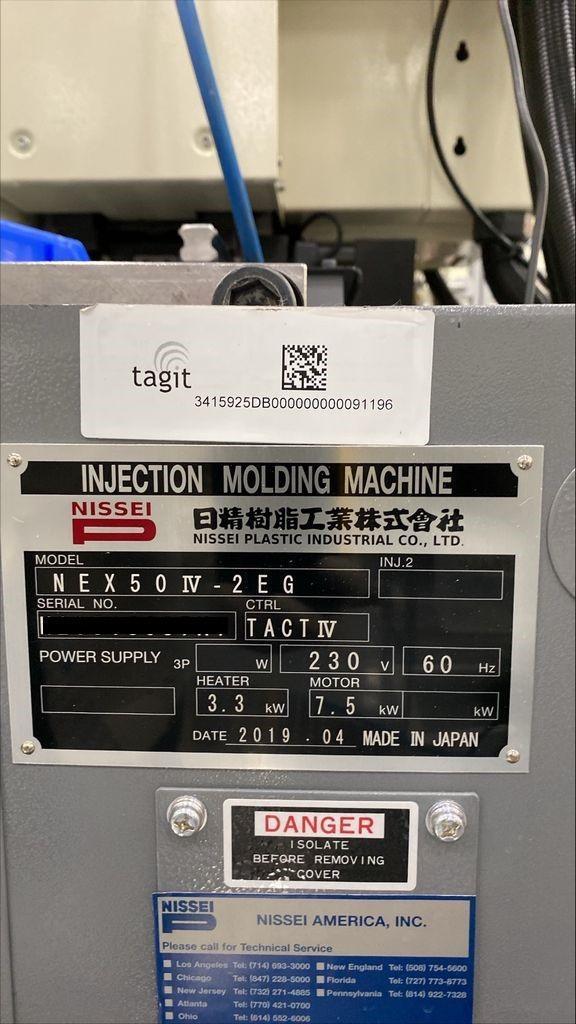

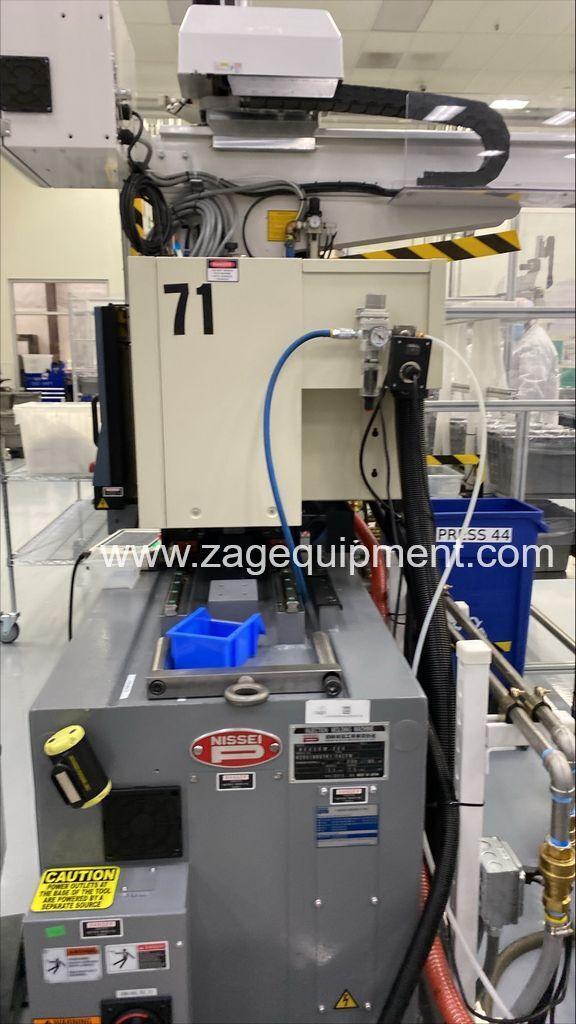

| Manufacturer | Nissei | ||
| Year | 2019 | ||
| Model | NEX50IV-2EG | ||
| Voltage | 230V | ||
| Shot Size | 0.4 oz. | ||
| Clamping Force | 55 ton | ||
| Tie Bar Spacing | 14.2" x 14.2" | ||

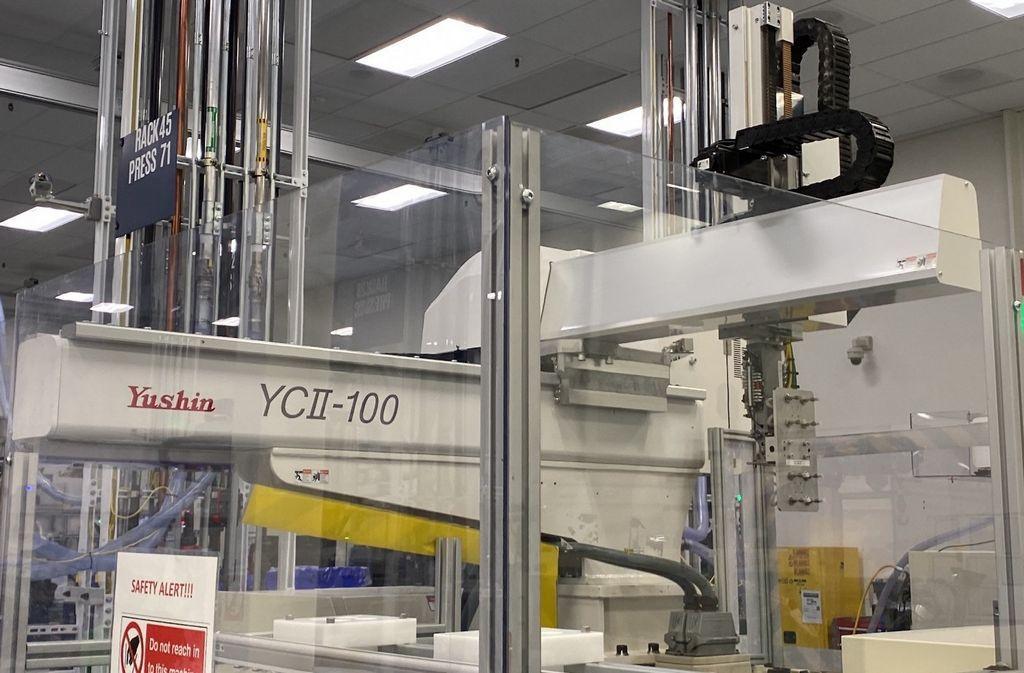

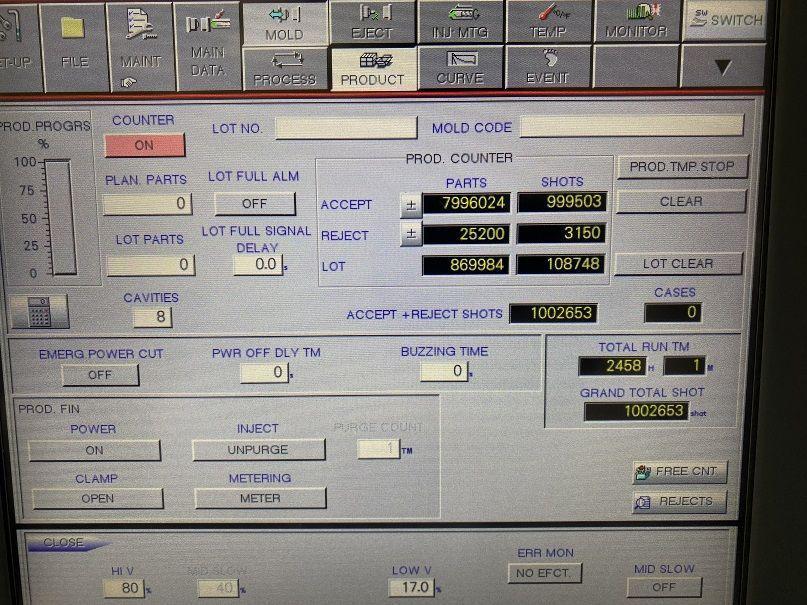

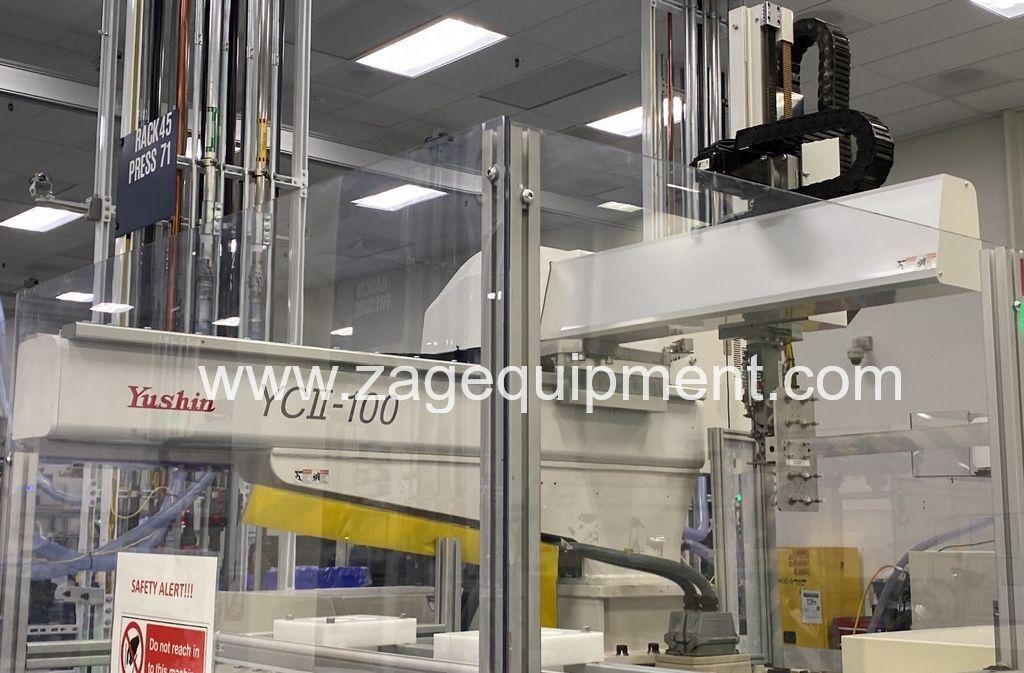

| Platen: 19.9" x 19.9" Max daylight: 28" Min/max mold height: 10" min Clamp stroke: 9.84" Ejector stroke: 2.95" Controller: Tact IV Equipped with: air blow, robot interface Weight: 5800 lbs. Robot Available Separately. Not included in sale price |
|||
