Screw:  18mm
Screw stroke:  90mm
Screw L/D:  20
Swept volume:  22 ccm
Max injection pressure:  1800 bar
Max injection speed:  250mm
Max injection rate:  64 cm3
Dosing speed:  450 RPM
Nozzle sealing force:   30 kN
Nozzle stroke:  150mm
Controller:  Sigmatek

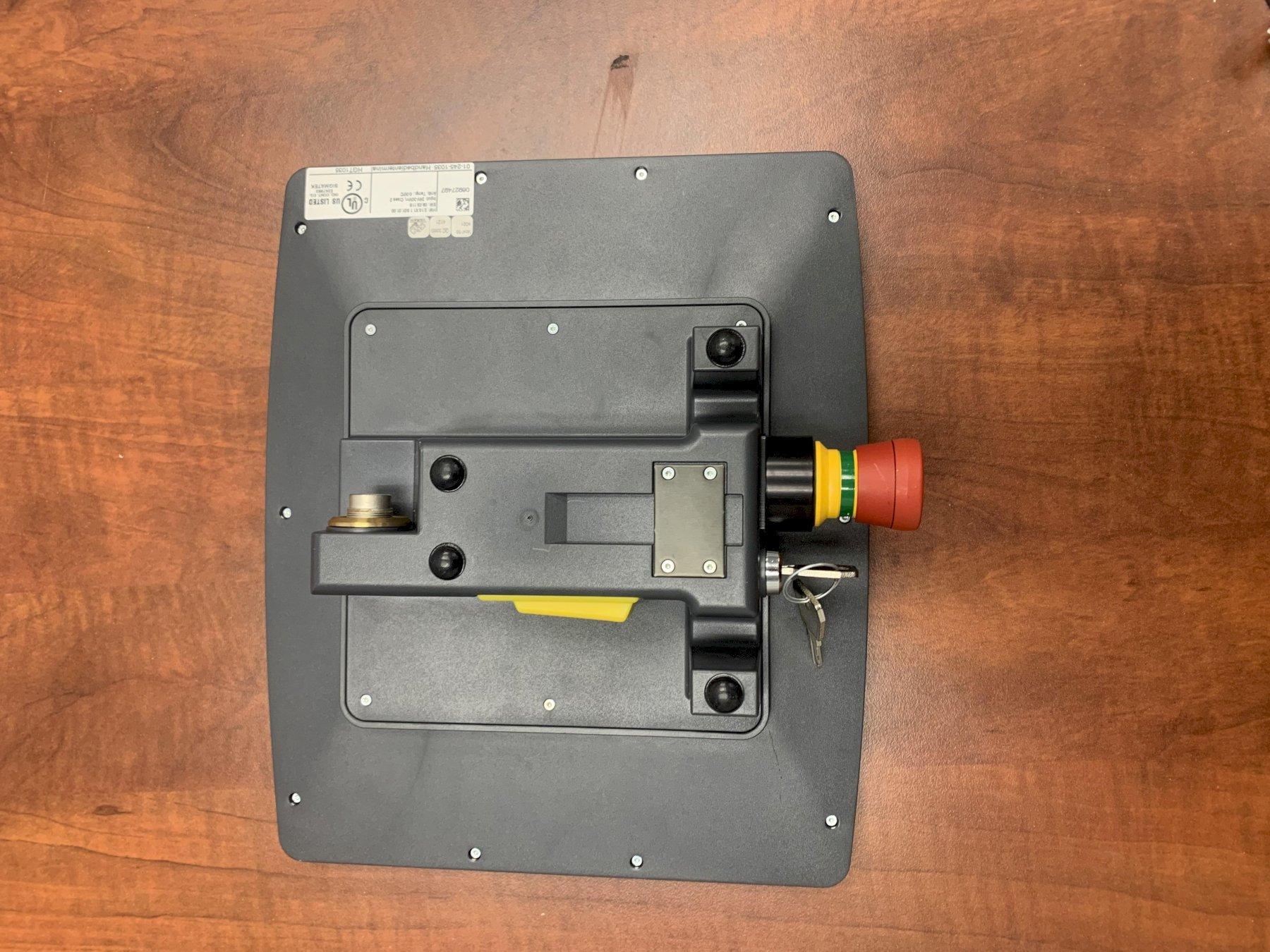

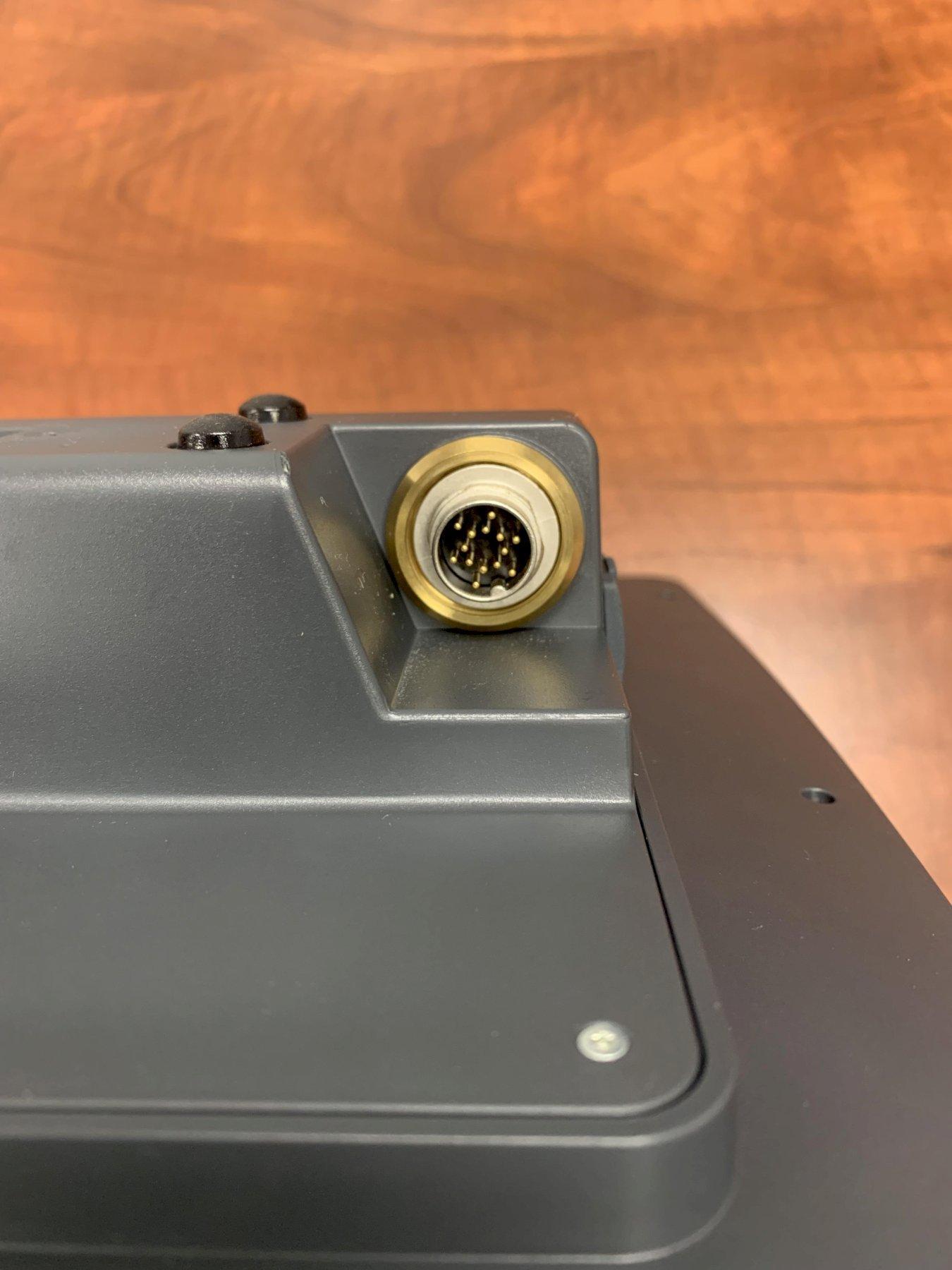

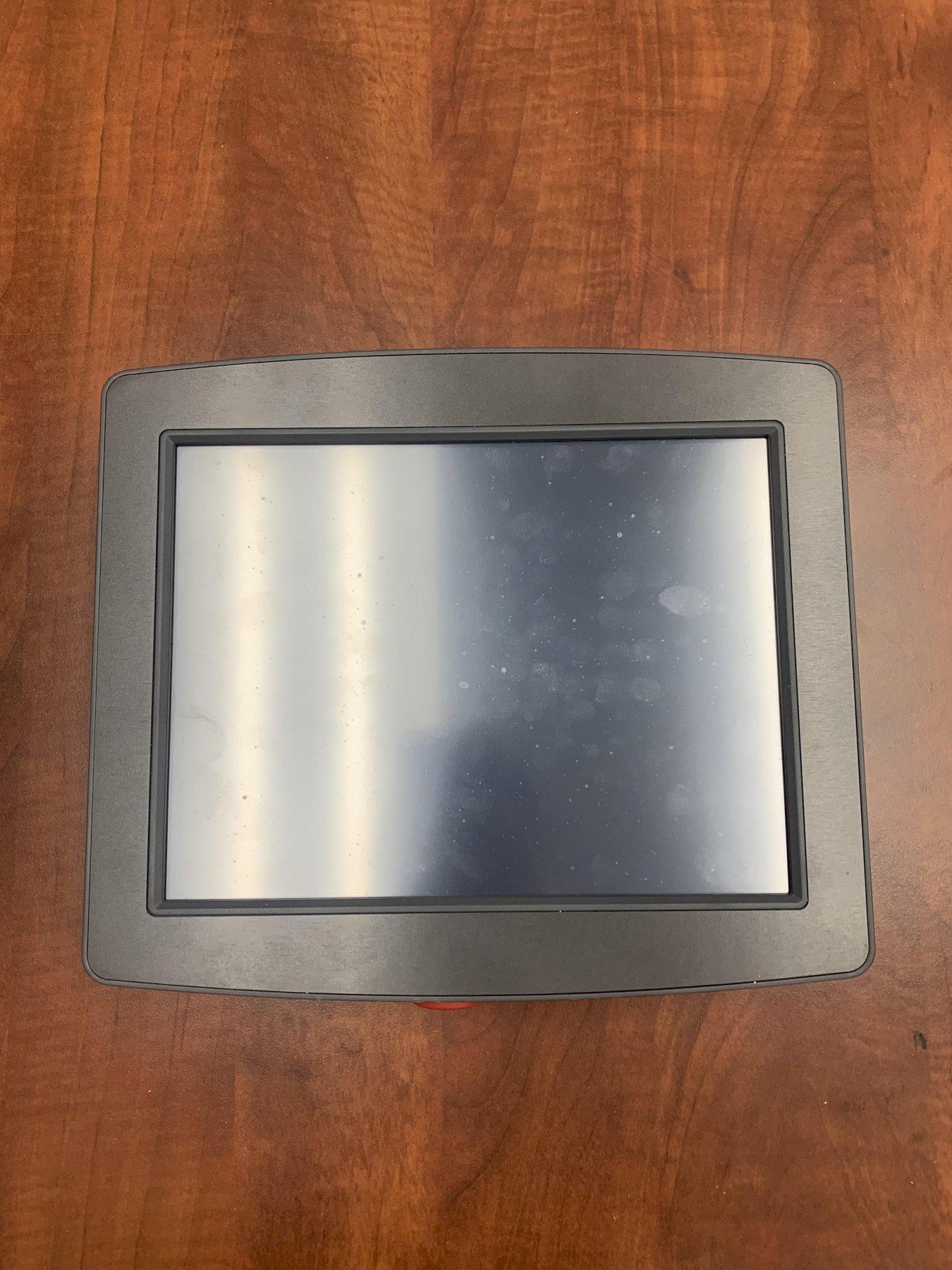

Equipped with:  10” portable operator terminal with touch screen for data input and manual movement control

Open nozzle
Nitrided Plasticizing unit
J-Type thermocouples
Water-cooled barrel feed zone
All movements controlled by electric motor

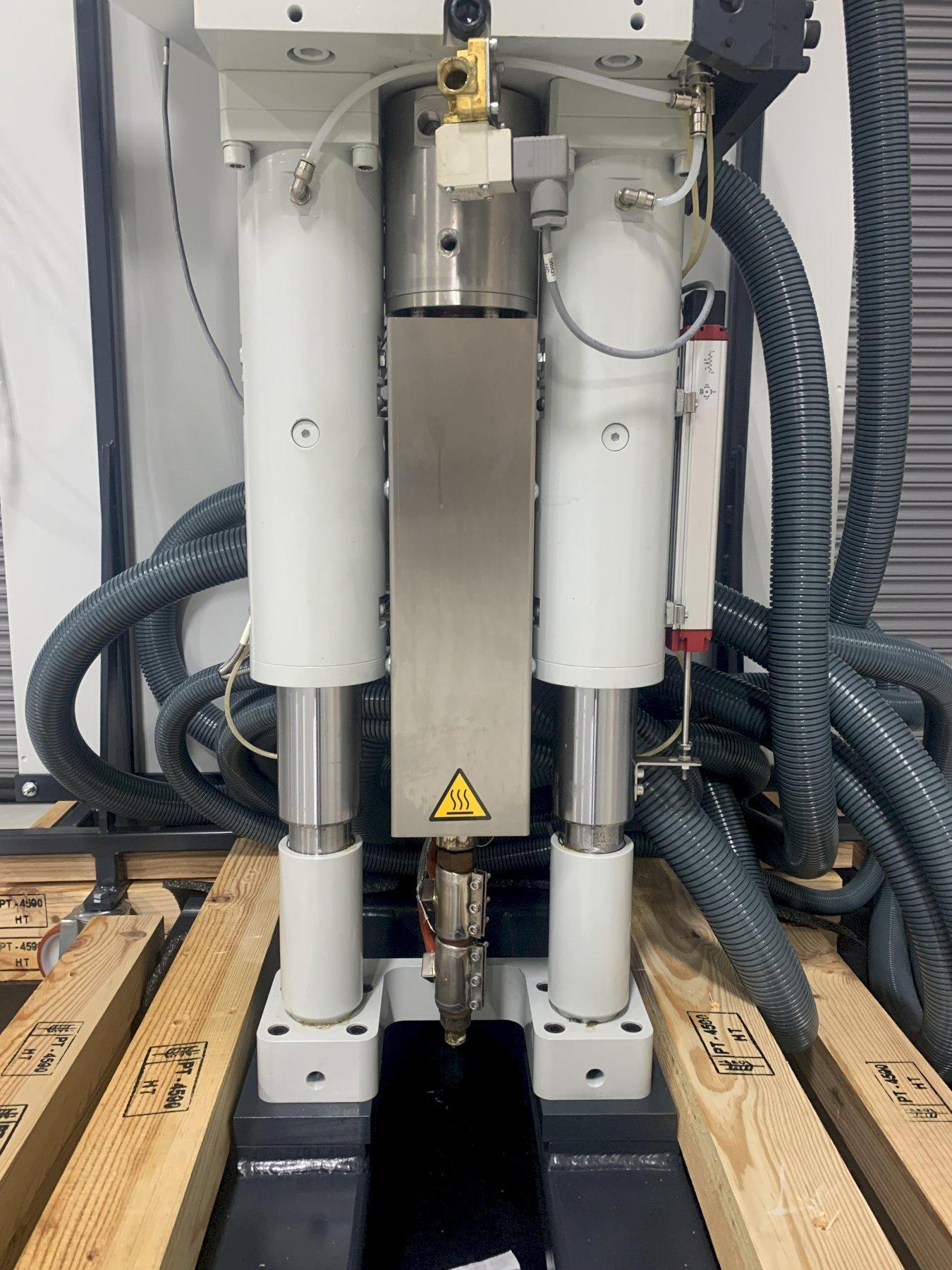

Hard chrome plated support / guide bars with flanges for direct bolting to the mould
18mm screw with a nitride screw and barrel

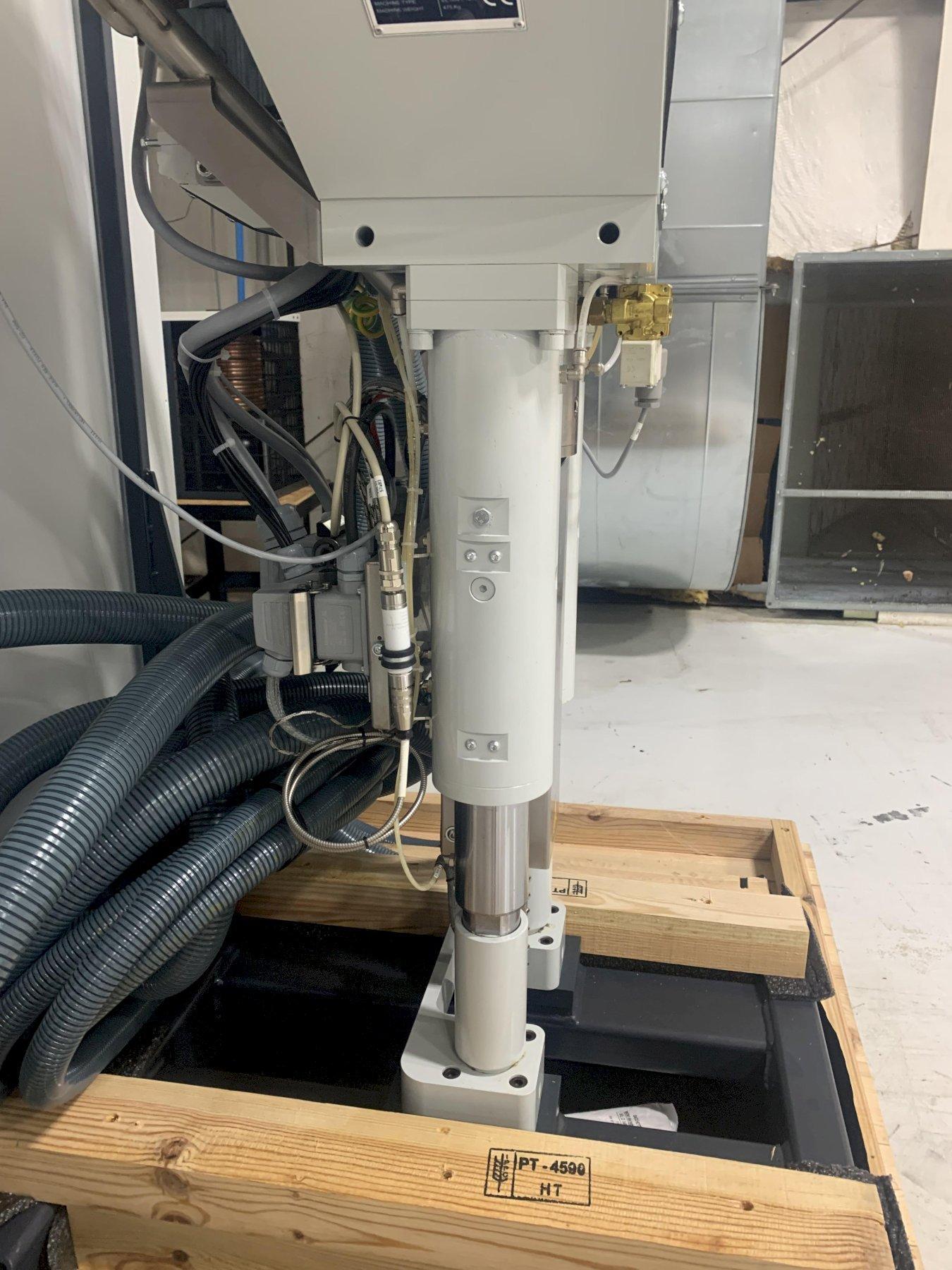

Vertical support but the horizontal support of the EL.0123 can also be used with this injection unit
Automatic lubrication

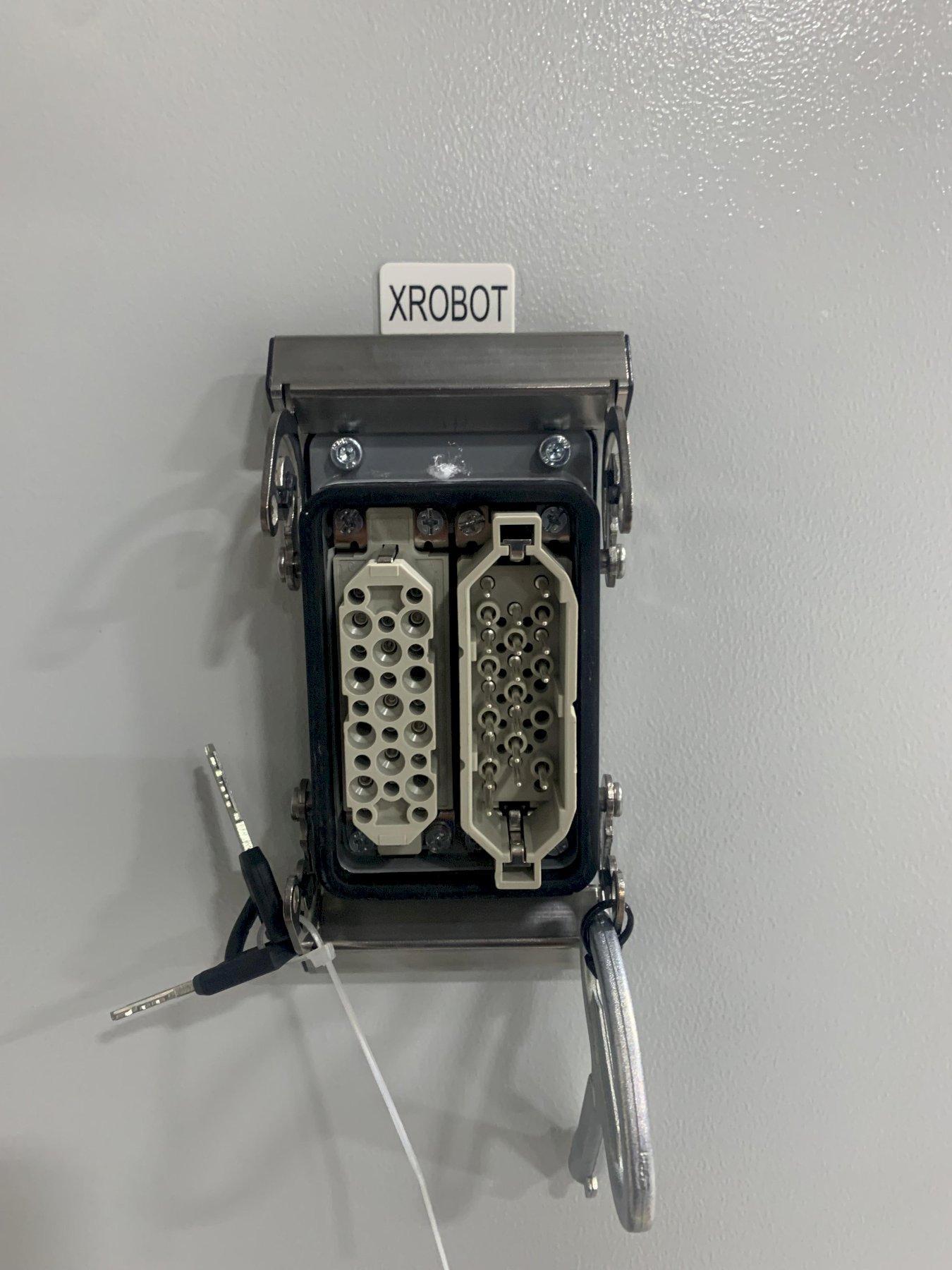

Euromap 67 interface

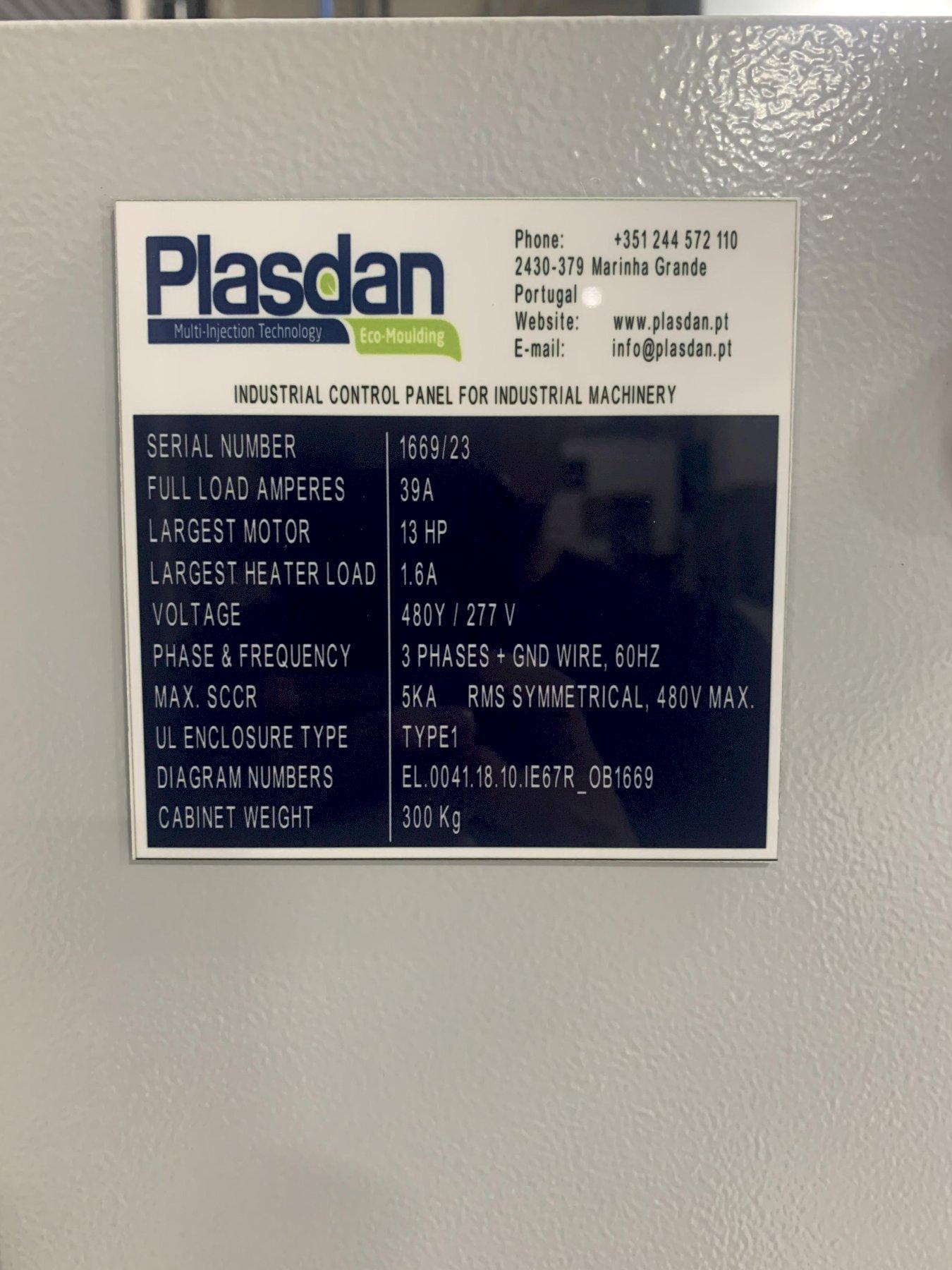

Force feeder and will be prepared to run directly off 3 x 480Vac
60Hz mains supply with Earth connection
