Specifications |
|||
|---|---|---|---|
| Manufacturer | UBE | ||
| Year | 2013 | ||

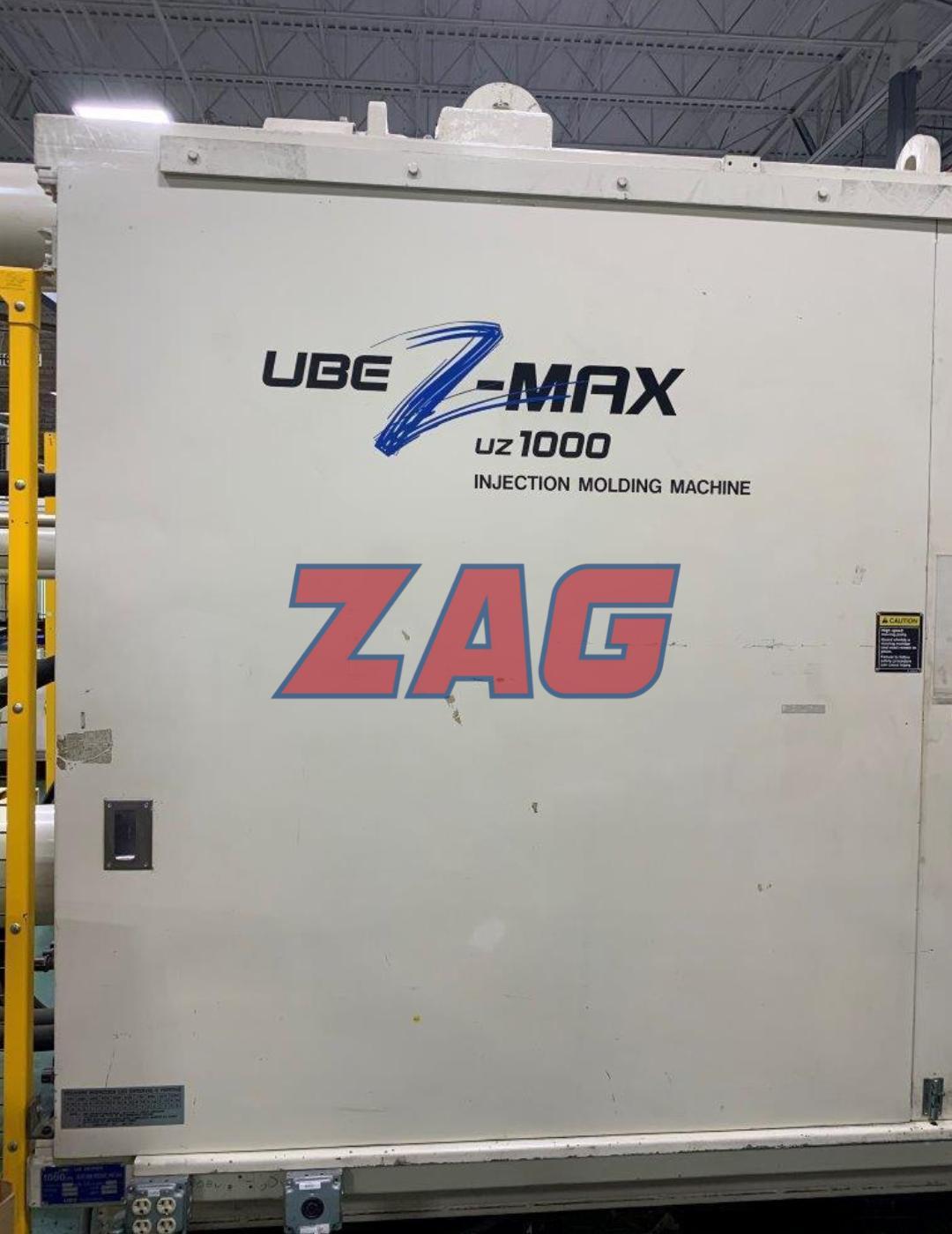

| Model | UZ1000 | ||

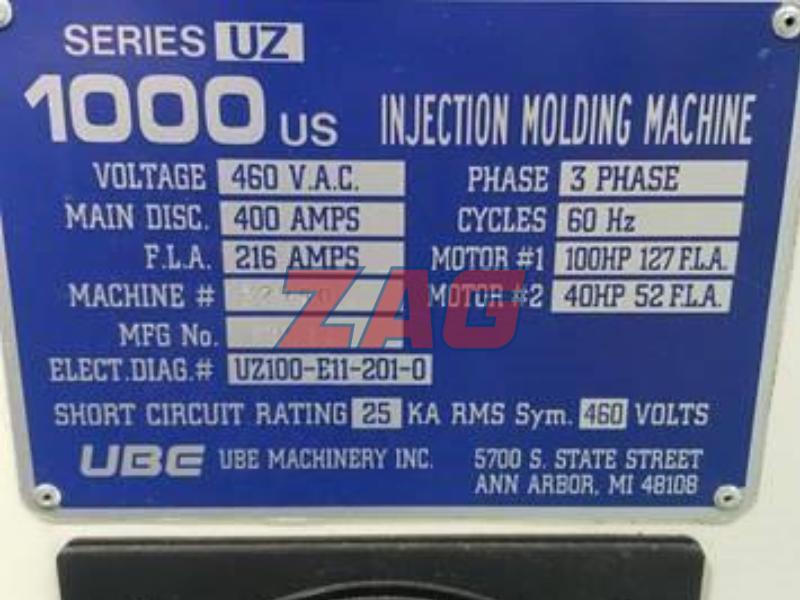

| Voltage | 460V | ||
| Shot Size | 148 oz | ||
| Clamping Force | 1000 US ton | ||
| Tie Bar Spacing | 60" x 50" | ||

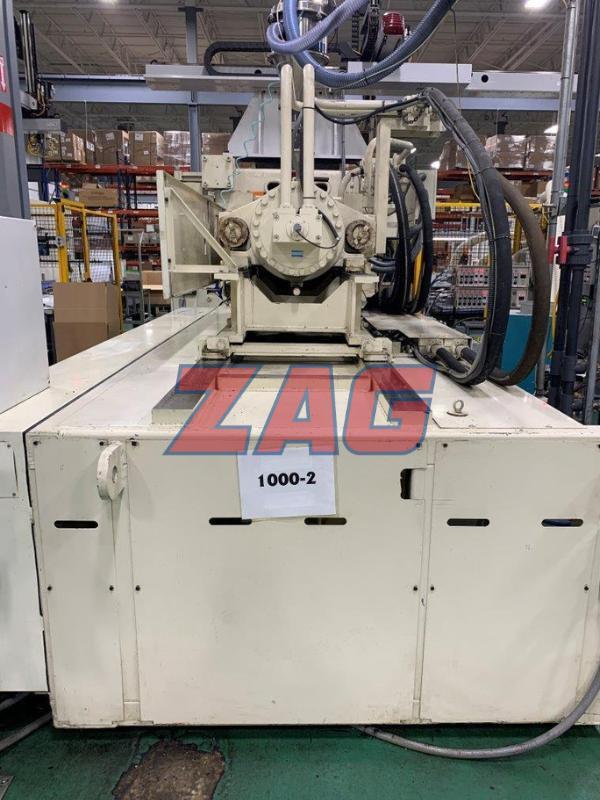

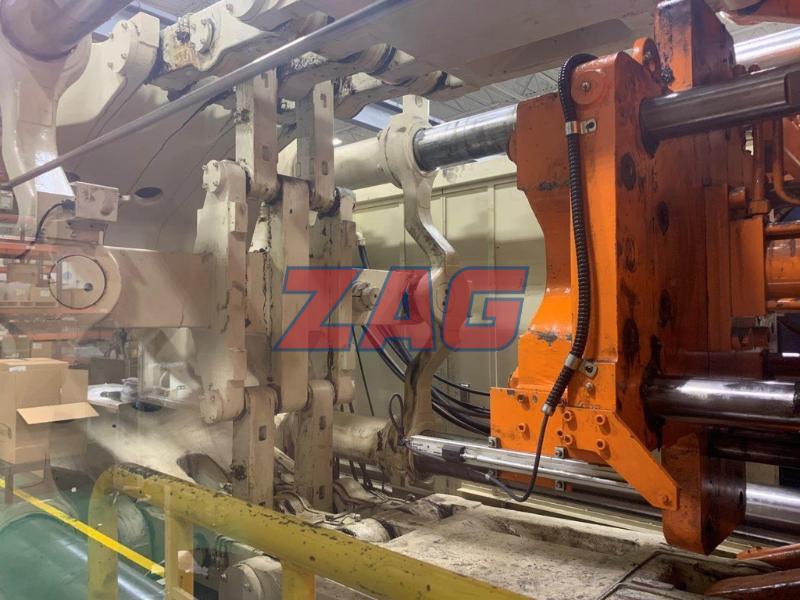

| Injection capacity: 277.96 cu cm Injection pressure: 24.860 psi Screw diameter: 100mm Clamp style: toggle Platen size: 76.92" x 66.92" Clamp stroke: 55.11 Min mold height: 52.75 Max mold height: 19.69 Equipped with: hydraulic knock outs; four(4) circuits core pull; two(2) circuits air blow; SPI robot interface; servo clamp control; six(6) pneumatic valve gates Clamp equipped with servo valve control system. Injection end: New Hagglund high speed hydraulic screw motor Injection Capacity: Machine equipped with A size barrel. Machine can be up sized to B size, 4.41 in, 185 oz capacity Dimensions: 506" L x 143"W x 111"H Weight: 114,000 lbs |
|||
